Integration of BIM, BEM and robotic fabrication for sustainable design and manufacturing of free‑form building façade panels

Building designers face increasing pressure to reduce energy consumption and carbon  emissions while maintaining functional, aesthetic, and constructible building  designs. Traditional design workflows often evaluate energy performance late  in the design process, limiting opportunities to optimize building form,  envelope characteristics, and façade performance before critical decisions  are made.

The challenge addressed in this research was the integration of Building Information Modelling (BIM), Building Energy Modelling (BEM), energy analysis, and design optimization into a unified workflow that supports  iterative decision-making from early design stages. The project specifically addressed the difficulty of translating geometric design information into actionable energy-performance improvements while accounting for local climate conditions, solar exposure, occupancy patterns, and material properties.

A further challenge involved façade optimization. Solar radiation is not  distributed uniformly across a building envelope some façade areas experience significantly higher solar exposure than others. Conventional design approaches often apply uniform façade solutions despite these variations, leading to inefficiencies in energy performance and  occupant comfort.

The research overcame these challenges by creating an operational  methodology that continuously evaluates energy consumption and CO₂ emissions,  applies evolutionary optimization techniques, and refines building components  based on measurable performance outcomes. This creates a feedback-driven  design process capable of identifying more sustainable and energy-efficient  building solutions.

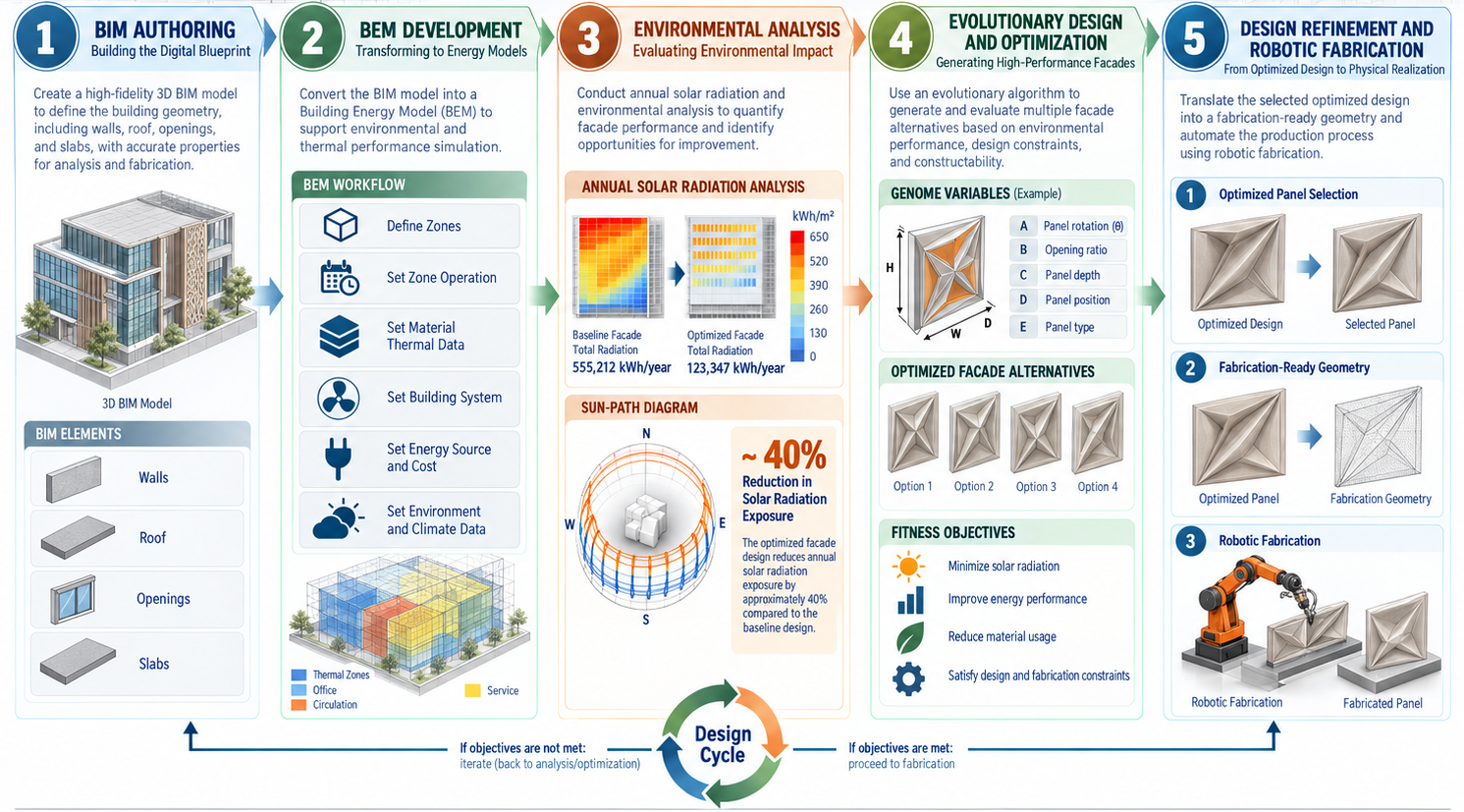

The solution is an integrated, iterative design methodology that combines BIM  authoring, Building Energy Modelling, energy-performance analysis, evolutionary design optimization, design refinement, and robotic fabrication  readiness within a single workflow.

The process begins with the creation of a detailed BIM model containing  walls, roofs, openings, and slabs. This model is transformed into a Building  Energy Model that incorporates occupancy schedules, zoning, thermal material  properties, building systems, energy sources, costs, and local climate  data.

Energy simulations are then performed to calculate building energy  consumption and associated CO₂ emissions. Rather than treating these results  as a final assessment, they become feedback inputs for design improvement. If project objectives are not achieved, the workflow enters an optimization cycle.

The evolutionary design stage evaluates alternative design configurations using predefined fitness objectives related to energy and sustainability performance. Solar-radiation analysis further informs façade optimization by identifying variations in exposure across the building envelope. Individual  façade components can then be adapted to respond to local solar conditions.

The optimized design is refined and prepared for implementation, creating a  continuous performance-based design process. This methodology transforms  energy analysis from a verification exercise into an active design driver, enabling project teams to systematically improve building performance while  maintaining architectural flexibility and supporting advanced construction workflows.
